近年來，上海相繼出臺了多項能效管控政策，推動了既有數據中心節能降碳。
In recent years, Shanghai has introduced a series of energy efficiency management policies, driving energy conservation and carbon reduction in existing data centers.
《上海市進一步推進新型基礎設施建設行動方案》、《上海市經濟信息化委市發展改革委關于推進本市數據中心健康有序發展的實施意見》（滬經信基(2022〕306號）等文件：強調推動數據中心綠色低碳發展，支持采用先進節能技術對存量數據中心進行改造升級。
《Shanghai Further Promotes New Infrastructure Construction Action Plan》、 《Implementation Opinions on Promoting the Healthy and Orderly Development of Data Centers in Shanghai》 (Hu Jingxinji [2022] No. 306) issued by Shanghai Municipal Commission of Economy and Informatization and Municipal Development and Reform Commission: These documents emphasize promoting green and low-carbon development of data centers, supporting the use of advanced energy-saving technologies to upgrade existing data centers.
政策核心訴求
Core Policy Requirements
強制能效提升：要求既有數據中心必須進行節能診斷和改造，降低PUE。
Mandatory Energy Efficiency Improvement:
Existing data centers are required to conduct energy-saving diagnostics and retrofits to reduce PUE (Power Usage Effectiveness).
鼓勵技術創新：支持采用自然冷卻、高效制冷、余熱利用等先進節能技術。
Encouraging Technological Innovation:
Supports the adoption of advanced energy-saving technologies including natural cooling, high-efficiency refrigeration, and waste heat recovery.
降低碳排放：改造項目需有效減少能源消耗與碳排放。
Carbon Emission Reduction:
Retrofit projects must effectively reduce both energy consumption and carbon emissions.
保障運行安全：改造過程及改造后系統確保數據中心供冷的連續性和可靠性。
Operational Safety Assurance:
The retrofit process and upgraded systems must guarantee uninterrupted and reliable cooling for data centers.
泰鉑科技能效改造案例
Taybo Energy Efficiency Retrofit Case Study
應上海市某數據中心邀請，泰鉑科技為其量身定制并實施了“類全天候雙冷源”節能改造方案。項目改造前情況如下:
At the invitation of a Shanghai data center, Taybo customized and implemented a "quasi-24/7 dual-cooling-source" energy-saving retrofit solution for the facility.Pre-retrofit conditions are as follows:

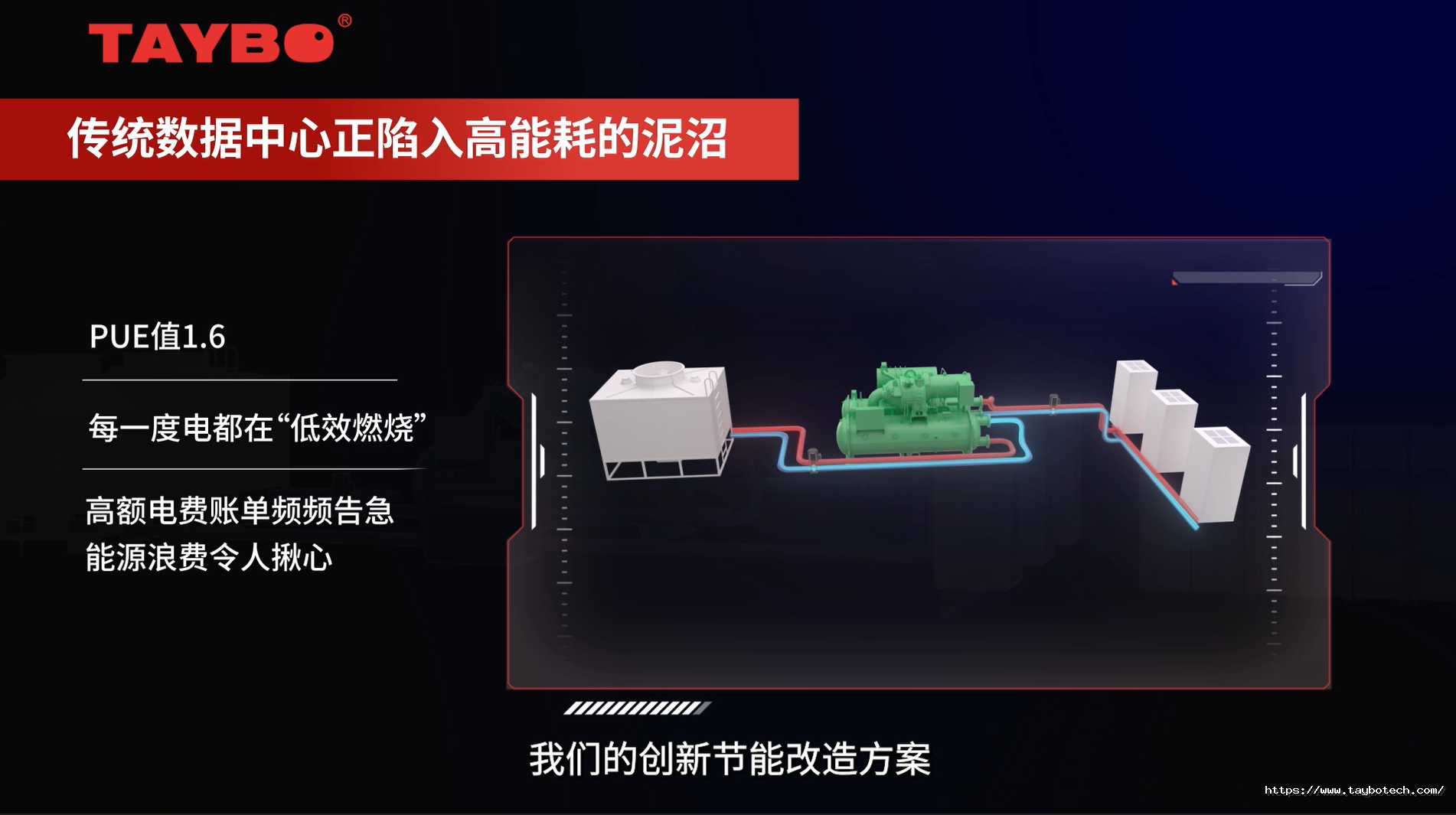

項目位于上海市，為某數據中心冷源節能改造，在用機柜實際功率為3500kW。原有冷源形式為變頻離心式冷水機組+冷卻塔+板換，末端精密空調送風形式為下送風上回風形式，回風溫度約27℃。
The project is located in Shanghai, involving an energy-saving retrofit of the cooling source for a data center, with the actual power of operational cabinets being 3,500 kW.The original cooling system consisted of variable-frequency centrifugal chillers + cooling towers + plate heat exchangers, while the precision air conditioning at the terminals adopted an underfloor air supply and overhead return air configuration, with a return air temperature of approximately 27°C.

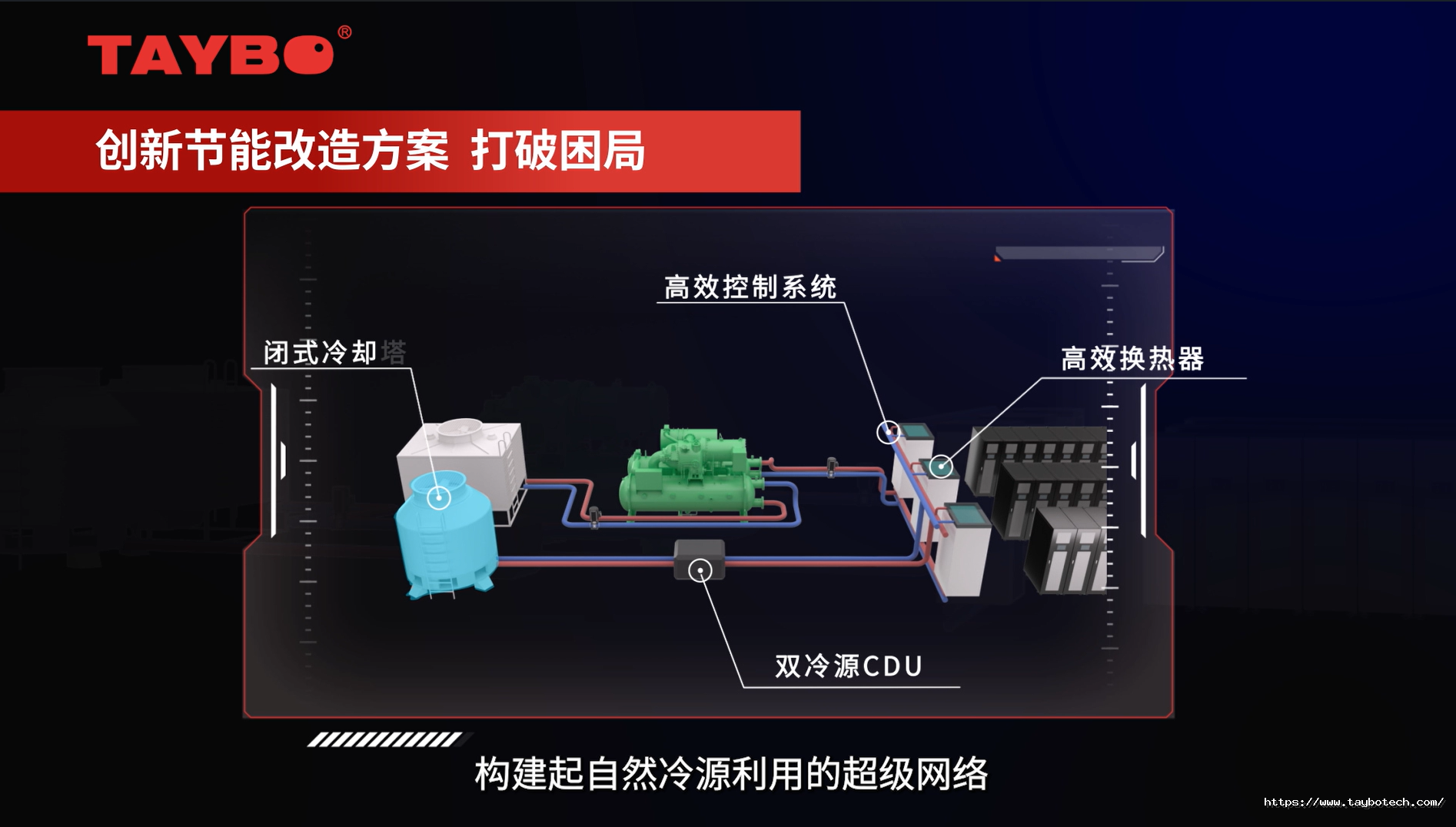

本項目充分依托上海市豐富的自然冷源條件，旨在顯著減少空調系統壓縮機的全年運行時長，有效降低機房PUE，實現數據中心節能降碳目標。泰鉑科技提供的是一套創新的數據中心節能解決方案，通過泰鉑研發定制的高效換熱器、雙源CDU、先進控制系統與閉式冷卻塔的協同工作，構建高效的自然冷卻系統。核心改造措施如下：
This project fully leverages Shanghai's abundant natural cooling resources to significantly reduce annual operating hours of air conditioning compressors, effectively lower data center PUE, and achieve energy-saving and carbon reduction goals. Taybo provides an innovative energy-efficient solution for data centers, featuring a high-efficiency natural cooling system through the coordinated operation of Taybo's customized high-performance heat exchangers, dual-source CDUs, advanced control systems, and closed-circuit cooling towers.The core retrofit measures are as follows:

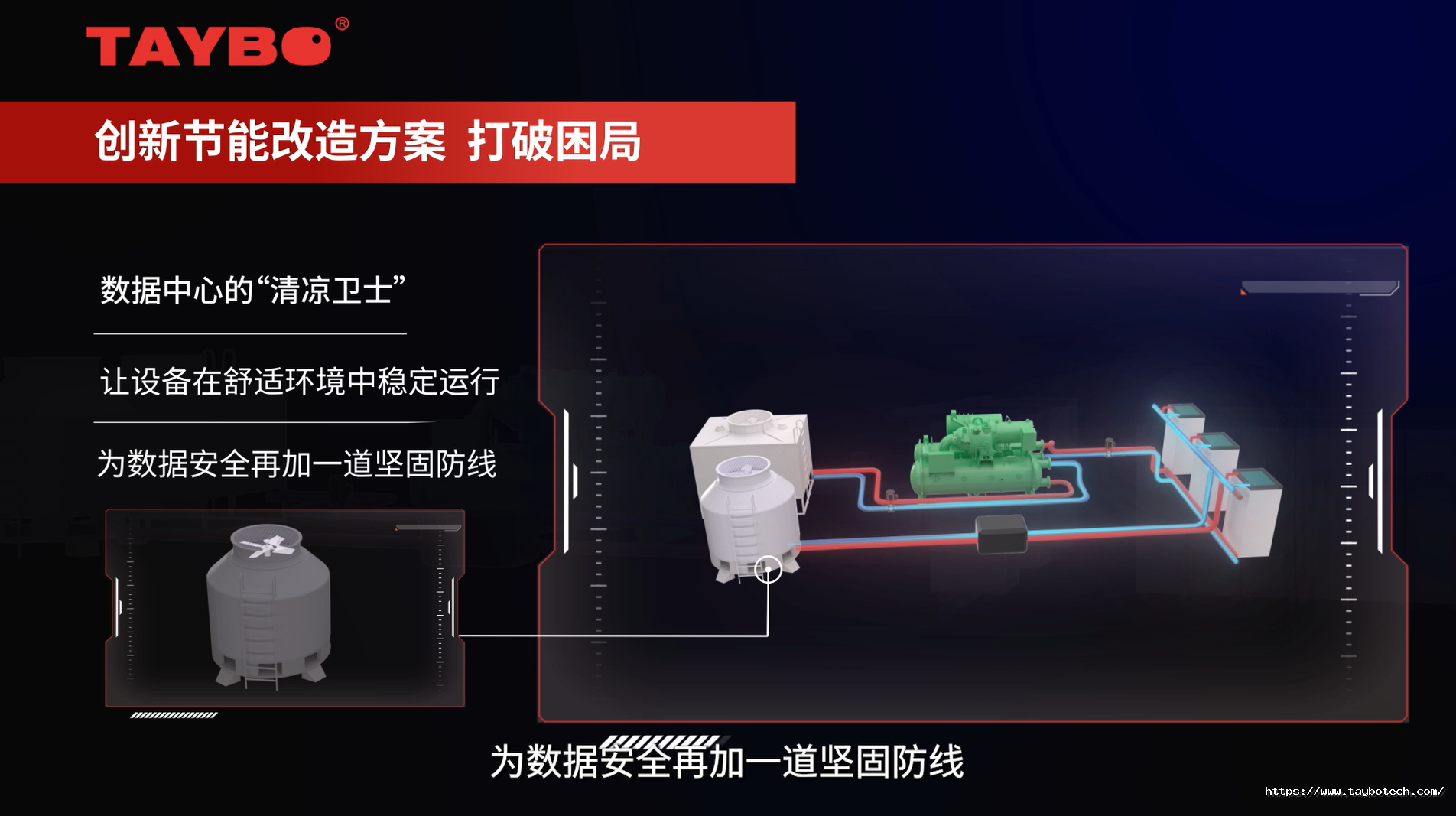

（1）新增自然冷源系統：在原有系統基礎上，增加泰鉑定制研發的冷卻塔、高效換熱設備及中央控制系統。
1.New Natural Cooling System:
A Taybo-customized cooling tower, high-efficiency heat exchange equipment, and central control system have been added to the existing infrastructure.
（2）雙源協同與智能控制：
2.Dual-Source Synergy & Intelligent Control：
1）室外溫度較低時（通常低于設定閾值），系統全部采用自然冷源（閉式冷卻塔+換熱器）供冷，關閉或最小化機械制冷。
When outdoor temperatures are low (typically below the set threshold), the system operates entirely on natural cooling sources (closed-circuit cooling towers + heat exchangers), shutting down or minimizing mechanical refrigeration.
2）室外溫度較高，自然冷源不足以帶走全部室內熱量時，系統智能開啟機械制冷，形成“機械制冷+自然冷源”的雙冷源協同模式。
When outdoor temperatures rise and natural cooling sources cannot fully remove indoor heat load, the system intelligently activates mechanical refrigeration, creating a dual-source synergy mode combining"mechanical + natural cooling".
3）自然冷源系統采用1+1備份設計，全方位保障供冷連續性和系統穩定運行。
The natural cooling system features a 1+1 redundant configuration, ensuring comprehensive cooling continuity and system stability.
（3）無干擾改造：方案不改變數據中心原有制冷系統設備，改造期間保障不間斷供冷，極大降低實施風險和對業務的影響。
3.Non-Disruptive Retrofit:
The solution preserves the existing cooling infrastructure while ensuring uninterrupted cooling during implementation, significantly reducing operational risks and business impact.
（4）冷負荷轉移： 新增一套自然冷源系統，優先采用自然冷源供冷，大幅降低后續水冷機組的能耗負擔。在適宜氣候條件下，自然冷源系統可完全獨立承擔制冷任務。
4.Cooling Load Shifting:
A new natural cooling system will be added to prioritize free cooling, significantly reducing the energy load on the subsequent water-cooled chiller units. Under suitable climate conditions, the natural cooling system can fully and independently handle the cooling demand.

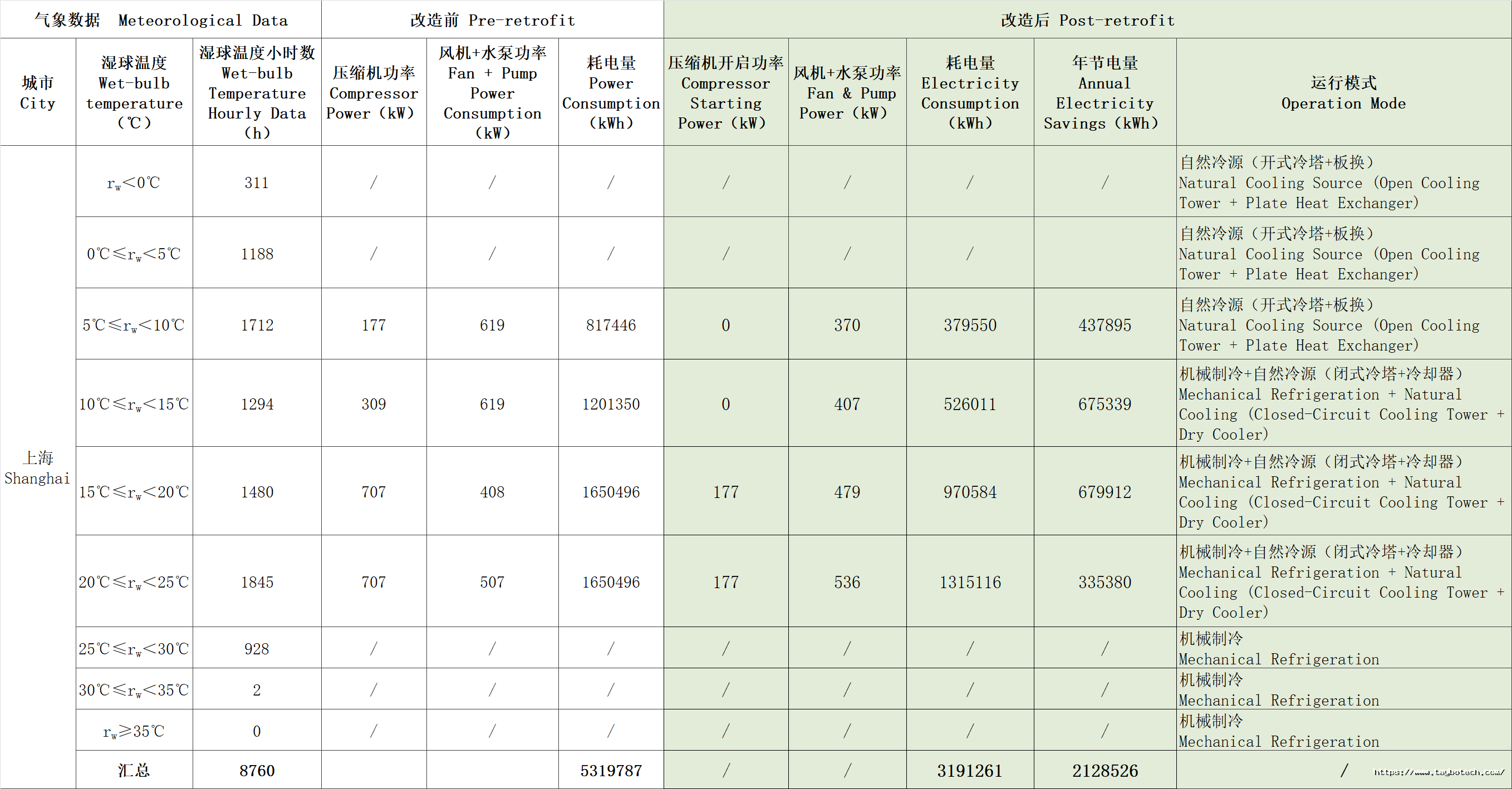

實施改造后，本項目年節約用電量為213萬kWh，年節約費用170萬元（電費單價0.8元/kWh）。
After the retrofit, the project achieves an annual electricity savings of 2.13 million kWh, resulting in costsavings of 1.7 million yuan per year (electricity price: 0.8 yuan/kWh).
技術成效及獨特性分析
Technical Performance and Uniqueness Analysis
本項目涉及的改造不改變數據中心的原有設備，安裝便捷，改造期間實現不間斷供冷。改造后實現年節省標煤604噸標準煤，實現年碳減排量894噸，年節省能源費用170萬元。且本項目采用泰鉑科技投資，客戶分享節能收益的形式，客戶可在節省固定資產投入的同時共獲得220萬元的節能收益。
The retrofit involved in this project does not modify the existing equipment of the data center, ensuring easy installation and uninterrupted cooling during the upgrade. Post-retrofit, it achieves an annual reduction of 604 tce in standard coal consumption, an annual carbon emission reduction of 894 tons, and annual energy cost savings of 1.7 million yuan. Additionally, this project follows an investment model by Taybo, where the customer shares in the energy-saving benefits. The customer can save on fixed asset investment while receiving a total of 2.2 million yuan in energy-saving revenue.
